SL-EBR01 is an encapsulated version of a peroxide breaker, it can be used in most guar or guar derivative based fracturing fluids, and polymer fracturing fluids.
Breaker
HT Encapsulated Gel Breaker SL-EBR01
Proppant-pack permeability can be severely damaged by gelling agents such as guar or polymers. The amount of damage increases as polymer concentration increases. Breakers are generally used to reduce the viscosity of the fracturing fluids by degrading the polymer that is concentrated in the proppant pack.
inquire now
Product Description
Technical & Engineering Information
SL-EBR01 is a particulate material with specific size produced by coating (encapsulating) a peroxide breaker with a water-resistant barrier. If it is not encapsulated, the breaker will quickly reduce the fluid viscosity. The encapsulation of the breaker greatly reduces the contact between the fracturing fluid and the breaker, without coating, would reduce the fluid viscosity.
SL-EBR01 cannot leak off and be lost to the formation, it remains in the fracture where it is needed to degrade polymers. After fracturing treatment, the release of the breaker occurs as the reservoir temperature increases and the fracture closes. Because the breaker chemical is released slowly from SL-EBR01, it is recommended to shut-in at least 12 hours, especially for wells with bottomhole static temperature less than 200℉ (93℃). For wells with bottomhole static temperature less than 200℉ (93℃) and turn-around times less than 12 hours, a tail-in of breaker SL-BR05 is recommended to provide a more rapid, near-wellbore breaker. There are no stressful closure requirements for use of this breaker system. The effective working temperature for SL-EBR01 is in the range of 180-270℉ (82 to 132℃).
SL-EBR01 can be used in most guar gum and polymer based fracturing fluid systems. It is compatible with most additives used in these systems, except reducing agents or strong oxidizing agents. Care should be taken to avoid the use of reduced additives and stronger breakers together with SL-EBR01.
Technical Indicators
Item | Indicator |

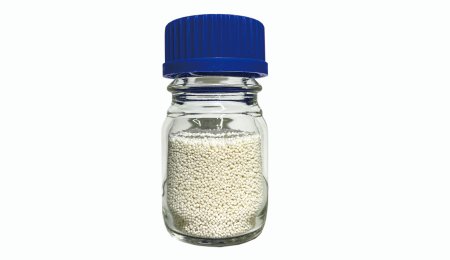

Appearance | White Granules |
Particle Size Distribution(850-425μm) | ≥50 % |
Water Solubility | Completely Not |
Break Content | ≥60 % |
S.G. | 2.5-2.6 |
Break Time @90℃ | 15-360 min |
Recommended Treatment
SL-EBR01 concentration depends on factors such as polymer concentration, temperature, break time requirement, and polymer type. Laboratory testing may be required for optimized breaker schedule design.
Release Rate @30MPa ≥ 55%
Packing and Storage
SL-EBR01 is supplied in plastic-lined bags with net weight of 25 kg/bag. Keep it away from extreme conditions such as places wet and humid or direct sunlight.
Shelf life: 2 years.
